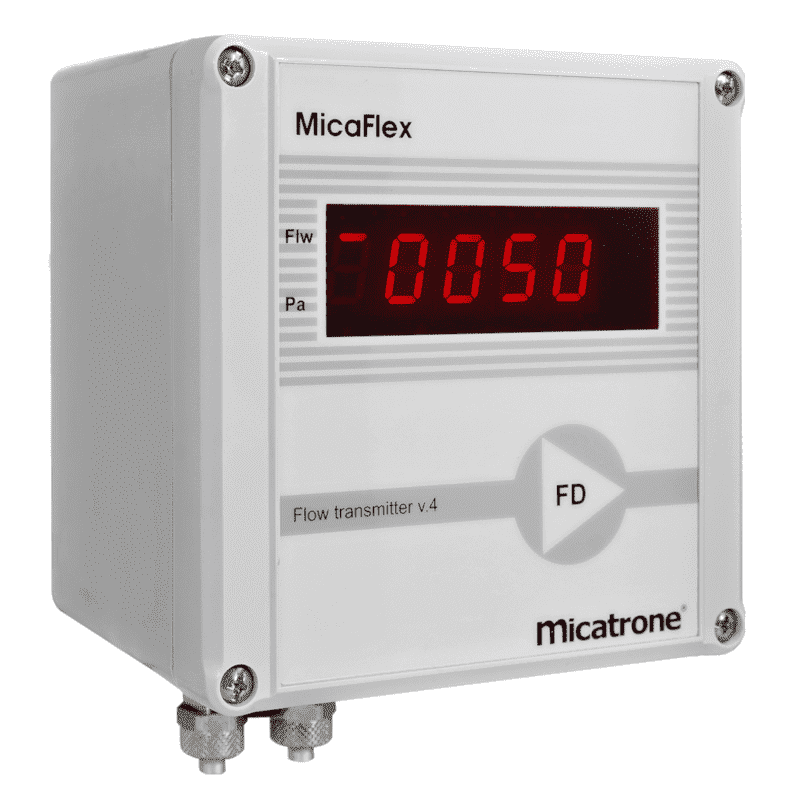

Micaflex MF-FD is a flow linear differential pressure transmitter specially developed for measuring air flow, together with all types of flow sensors with known flow constant, e.g. MFS flow sensor in ventilation ducts, chambers and rooms. They have an adjustable damping and a choice between a 0-10 V or 4-20 mA output. The flow transmitter is fitted with a 4-digit LED display for indicaiton of c...

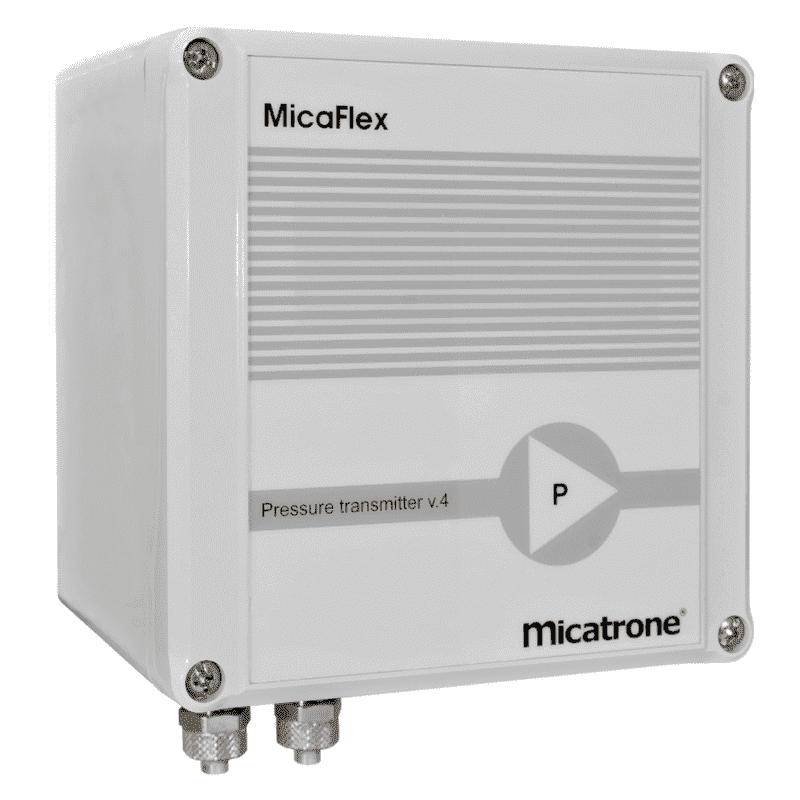

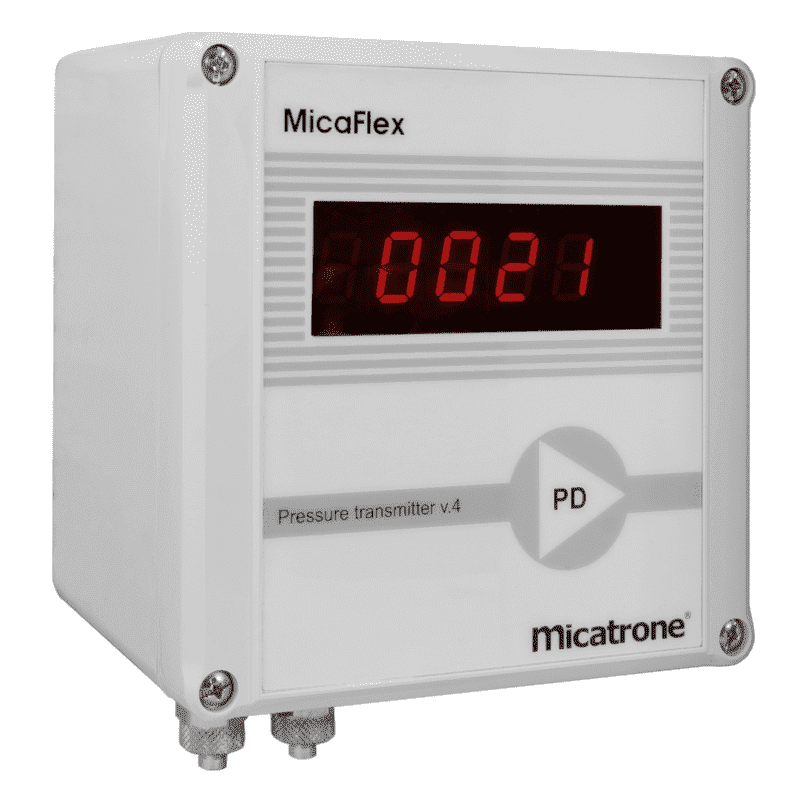

The Micaflex MF-P / MF-PD is a differential pressure transmitter for measuring positive pressure, negative pressure or differential pressure, with or without a display.

Micaflex MF-P / MF-PD is a pressure transmitter designed for low positive, negative and differential pressure in air-handling and ventilation systems where low pressure measuring is needed. They have an adjustable damping and a choice between a 0-10 V or 4-20 mA output. All transmitters can be delivered with or without a LCD display.

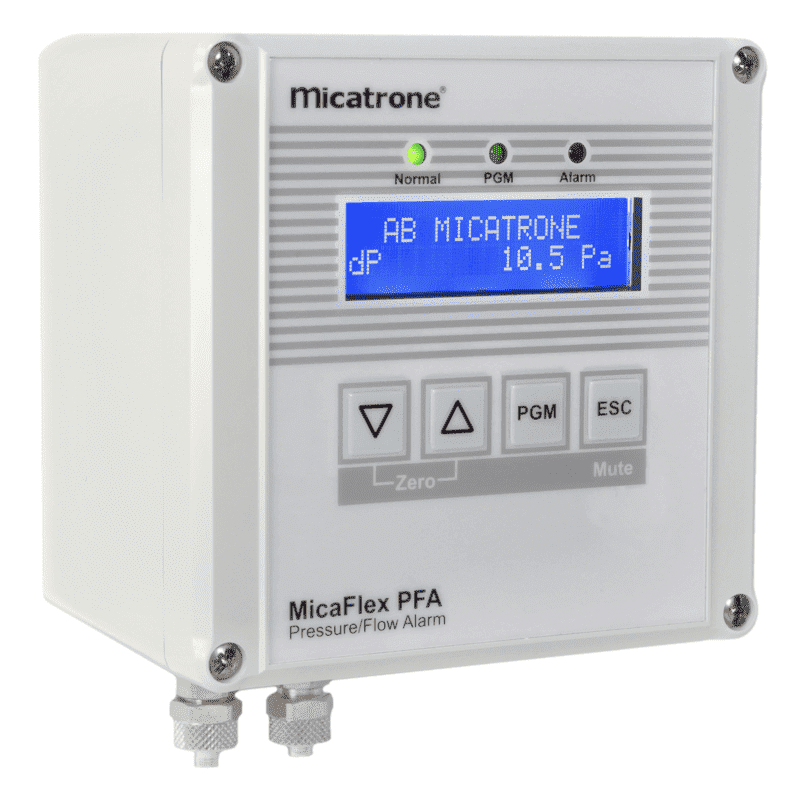

The MF-PFA series can measure the airflow in combination with the self-averaging MFS flow sensors in addition to differential pressure. Besides analog outputs, this series also features a built-in PI controller, which can directly controll a fan and 2 swithes for local alarms. Due to the high accuracy and stability, the MF-PFA is ideal for use in laboratories, hospitals and clean rooms. Each in...

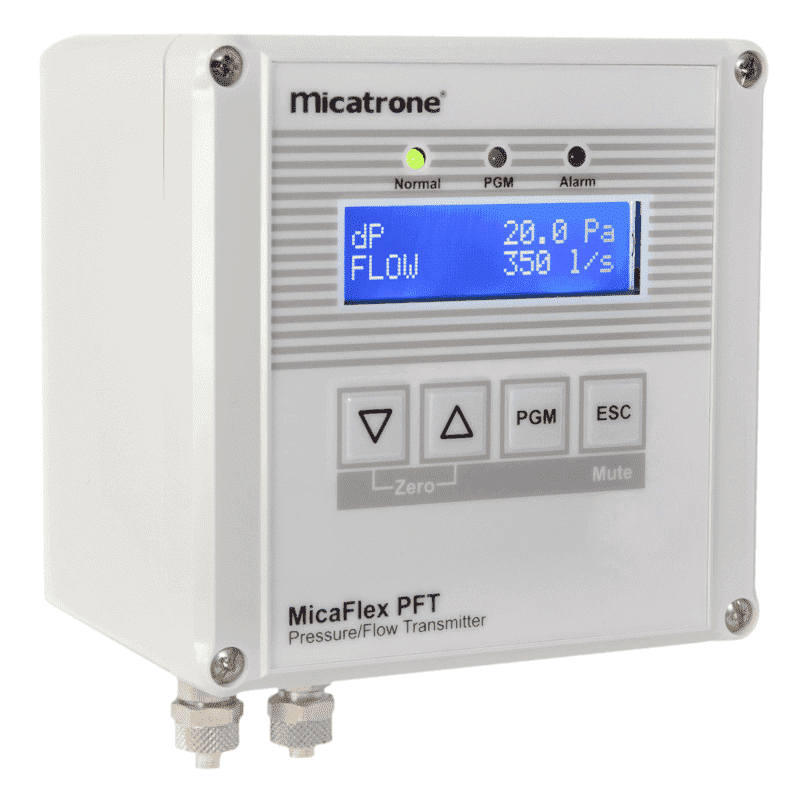

The MF-PFT series can measure the airflow in combination with the self-averaging MFS flow sensors in addition to differential pressure. Besides analog outputs, this series also features a built-in PI controller, which can directly controll a fan. Due to the high accuracy and stability, the MF-PFT is ideal for use in laboratories, hospitals and clean rooms. Each instrument is fully programmable.

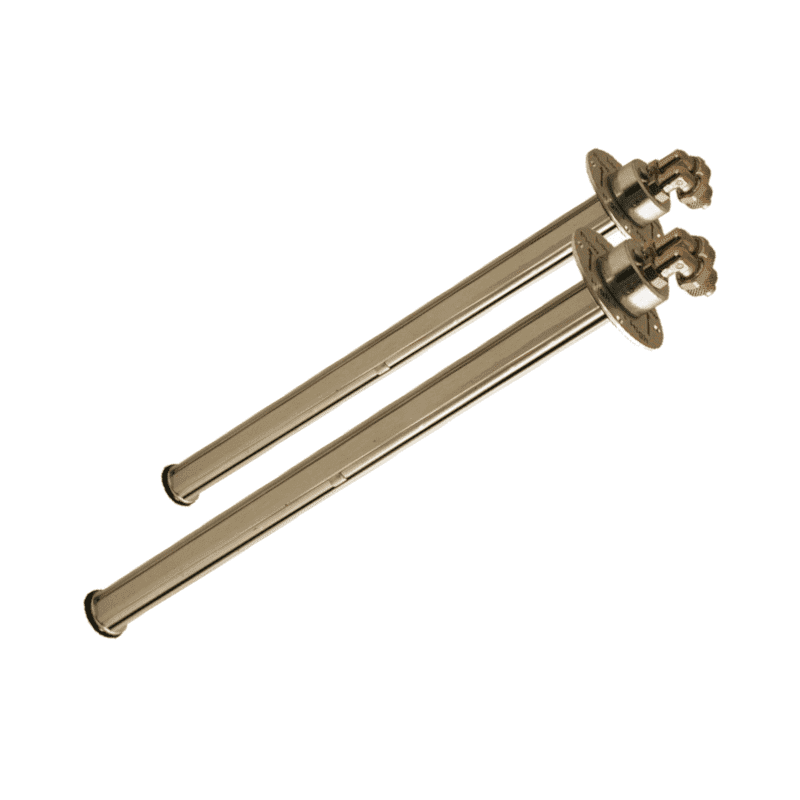

The MFS flowsensor is a patented, self-averaging flow-sensor for all kinds of ventilation ducts. The average of air flow is measured across the whole length of the sensor. Gives a 2,5 times higher differential pressure than a Prandtl tube measuring. Easy to install in existing ducts. Lengths from 100 to 2500 mm.

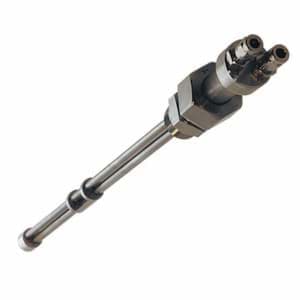

Micatrone's flow sensor MFS-SS has been developed to meet the great demand for accurate air flow measurement in all types of air-handling systems. The MFS-SS is based on the principle of averaging the velocity profile over the height or the diameter of the duct.

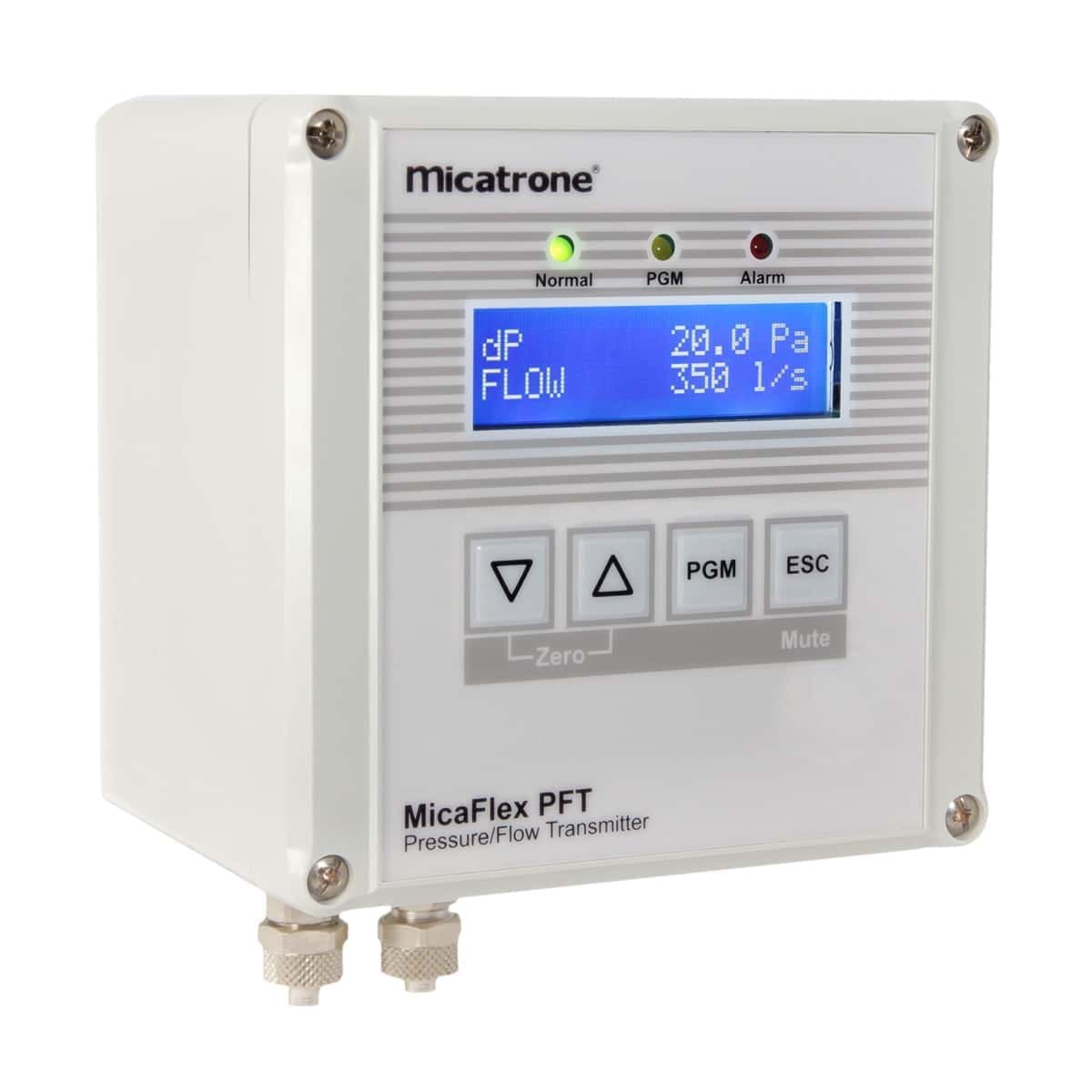

In addition to differential pressure, the MF-PFC transmitter also measures air velocities in combination with the MFS self-averaging flow sensors. The transmitter has 2 analog outputs that can be used for differential pressure, flow or PI control output. For example, the control output can be used to directly control a VAV valve. High accuracy and stability make the MF-PFC ideal for use in labo...

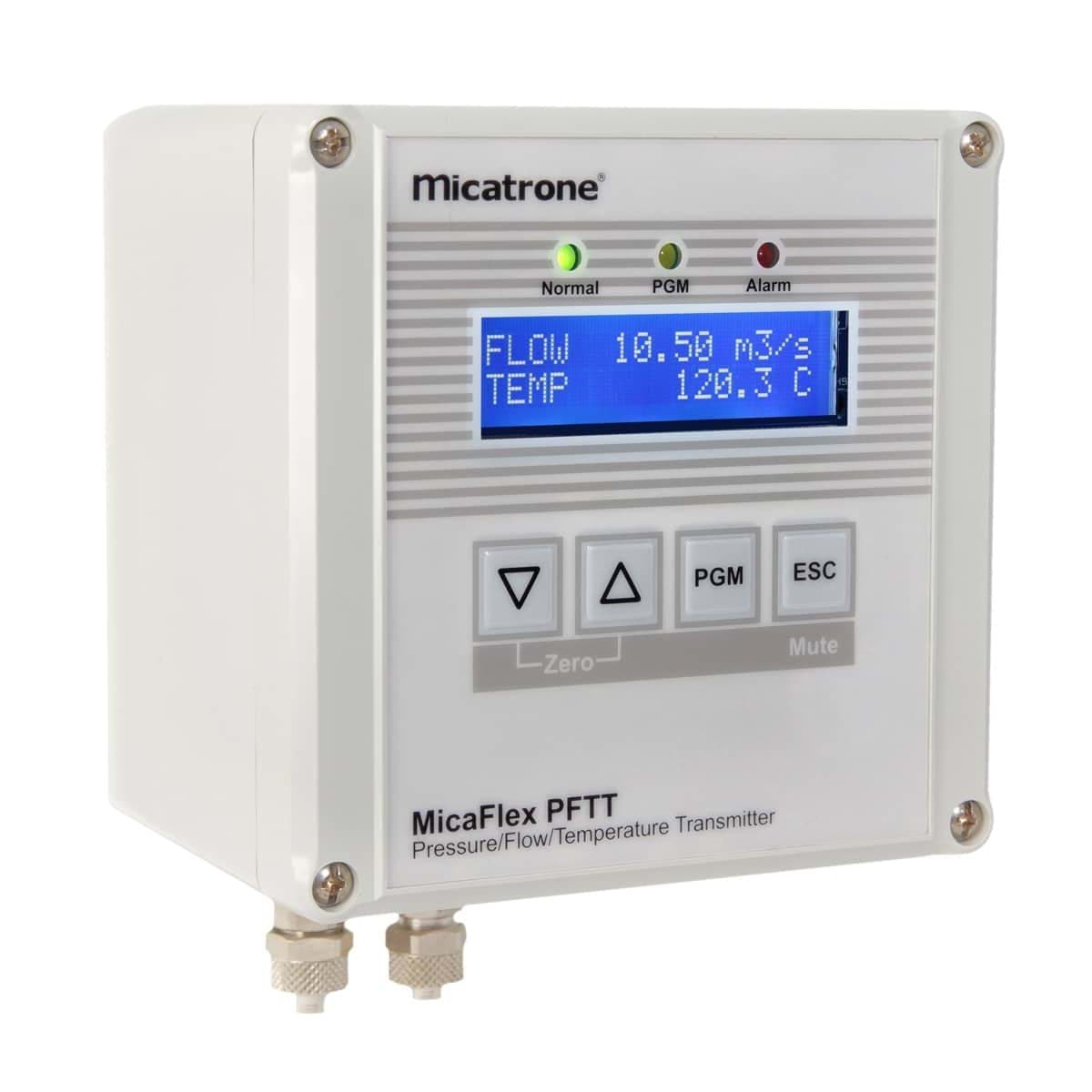

In addition to differential pressure, the MF-PFTT series transmitter also measures air velocities in combination with the MFS self-averaging flow sensors. Complementing its brother MF-PFT, the MF-PFTT has a temperature input for active temperature compensation. This is a very useful addition, especially with process air that varies a lot in temperature. This input is passive (Pt-100/1000) or ac...

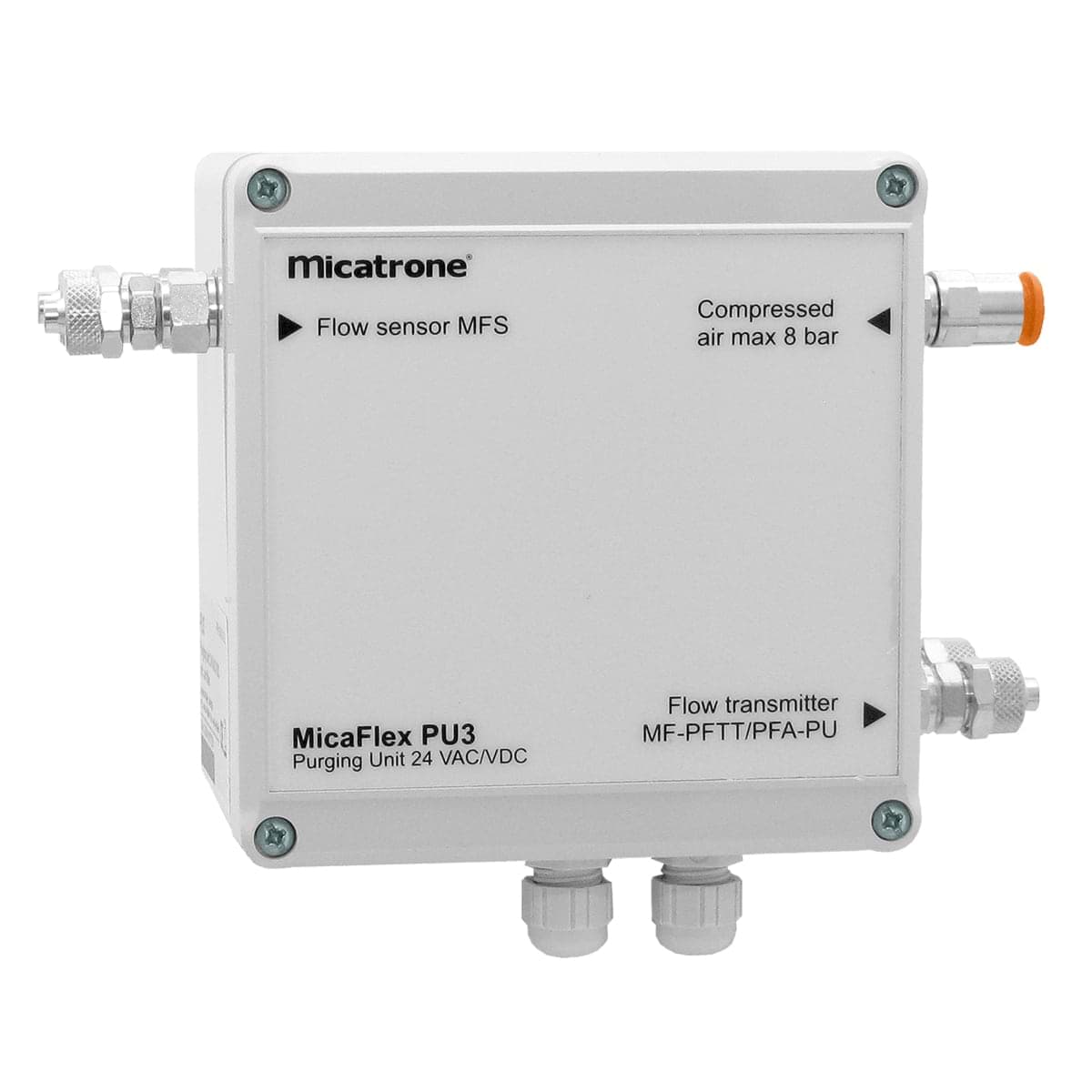

The Micatrone Series PU3 is designed to be used in conjunction with Micatrone Series PFTT or PFA-PU to prevent clogging of MFS self-averaging flow sensors. The PU3 unit is mounted between the transmitter and flow sensor(s). In dusty or condensed applications, the flow sensor is blown through with compressed air at regular intervals. The cleaning interval can be set between 30 and 3600 seconds a...
