Dwyer U-tube liquid column manometer series Flex-Tube

Dwyer U-tube liquid column manometer series Flex-Tube

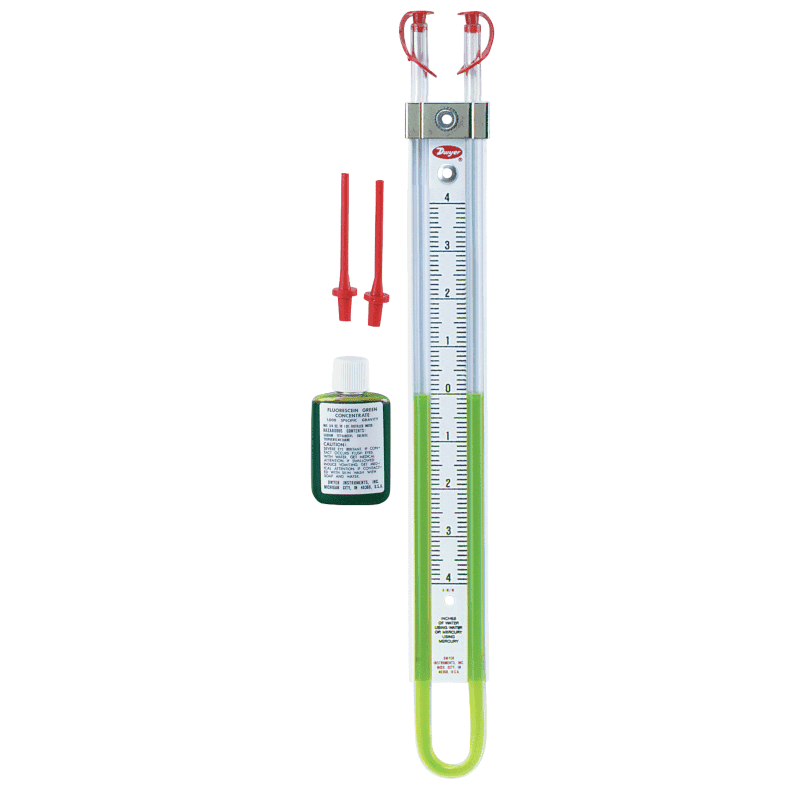

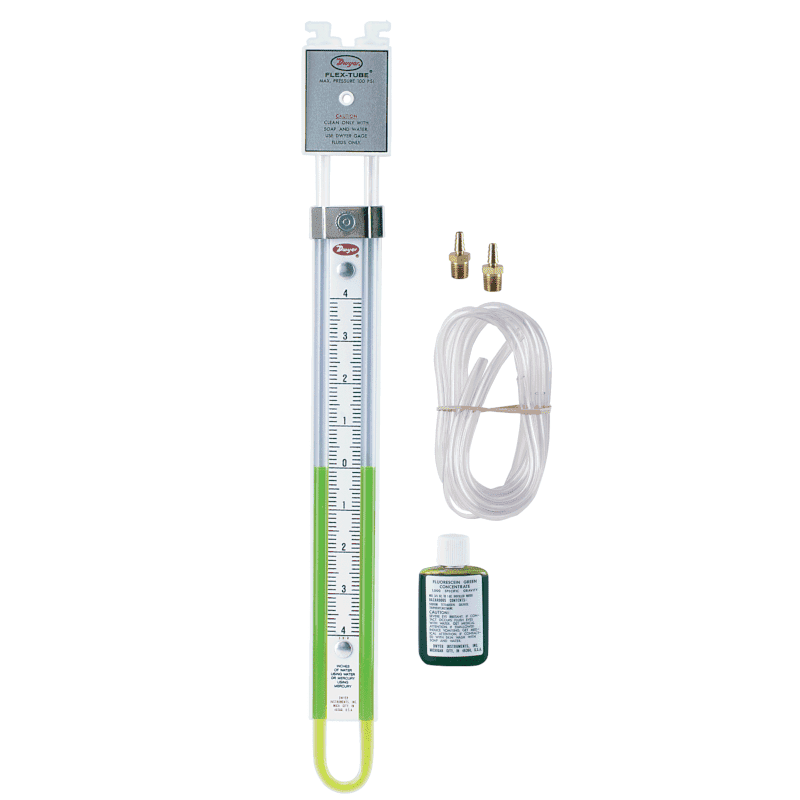

These inexpensive manometers measure positive, negative and differential pressures. Dwyer Flex-Tube U-Tube Manometers combine the inherent accuracy of the simple "U" Tube with the durability of tough, long-lasting plastic construction. Series 1221 Manometer, the simplest, lowest cost basic U-gage. Series 1222 Manometer, alll the features of the 1221 plus magnetic clips. Series 1223 Manometer, the finest U-gage for either portable or stationary use.

Compare

Questions?

Email a friend

Questions? Send me a message!

or call me on +31 (0)297 - 514 833

1221-M600W/M

range -300 to 300 mm w.c.

1221-M600-W/M 300...0...300 mm w.c.

Dwyer Flex-Tube U-Tube Manometer Model: 1221-M600-W/M Range: M600 (300...0...300 mm w.c.) Including: - 2 plastic carrying plugs and 2 flexible plastic tubing connectors - bottle fluorescein green dye concentrate

SKU	2001547
MPN	1221-M600W/M

1221-M300W/M

Range 150 to 150 mm w.c.

1221-M300-W/M 150...0...150MM

Dwyer Flex-Tube U-Tube Manometer Model: 1221-M300-W/M Range: M300 (150...0...150 mm w.c.) Including: - 2 plastic carrying plugs and 2 flexible plastic tubing connectors - bottle fluorescein green dye concentrate

SKU	2001546
MPN	1221-M300W/M

1221-M1000W/M

range 500 to 0 to 500 mm w.c.

1221-M1000-W/M 500...0...500MM

Dwyer Flex-Tube U-Tube Manometer Model: 1221-M1000-W/M Range: M1000 (500...0...500 mm w.c.) Including: - 2 plastic carrying plugs and 2 flexible plastic tubing connectors - bottle fluorescein green dye concentrate

SKU	2001548
MPN	1221-M1000W/M

1221-M200W/M

range 100 to 0 to 100 mm wc

1221-M200-W/M 100...0...100 mm w.c.

Dwyer Flex-Tube U-Tube Manometer Model: 1221-M200-W/M Range: M200 (100...0...100 mm w.c.) Including: - 2 plastic carrying plugs and 2 flexible plastic tubing connectors - bottle fluorescein green dye concentrate

SKU	2001550
MPN	1221-M200W/M

1221-M400W/M

range 200 to 0 to 200 mm w.c.

1221-M400-W/M 200...0...200 mm w.c.

Dwyer Flex-Tube U-Tube Manometer Model: 1221-M400-W/M Range: M400 (200...0...200 mm w.c.) Including: - 2 plastic carrying plugs and 2 flexible plastic tubing connectors - bottle fluorescein green dye concentrate

SKU	2001551
MPN	1221-M400W/M

1222-M1000W/M

range 500 to 0 to 500 mm w.c. with mounting clips

1222-M1000-W/M 500...0...500 mm w.c.

Dwyer Flex-Tube U-Tube Manometer Model: 1222-M1000-W/M Range: M1000 (500...0...500 mm w.c.) Including: - 2 magnetic mounting clips, 2 plastic carrying plugs and 2 flexible plastic tubing connectors - bottle fluorescein green dye concentrate

SKU	2009632
MPN	1222-M1000W/M

1222-M600W/M

range -300 to 300 mm w.c. with mounting clips

1222-M600-W/M 300...0...300 mm w.c.

Dwyer Flex-Tube U-Tube Manometer Model: 1222-M600-W/M Range: M600 (300...0...300 mm w.c.) Including: - 2 magnetic mounting clips, 2 plastic carrying plugs and 2 flexible plastic tubing connectors - bottle fluorescein green dye concentrate

SKU	2016056
MPN	1222-M600W/M

1222-M300W/M

range 150 to 0 to 150 mm w.c. with mounting clips

1222-M300-W/M 150...0...150 mm w.c.

Dwyer Flex-Tube U-Tube Manometer Model: 1222-M300-W/M Range: M300 (150...0...150 mm w.c.) Including: - 2 magnetic mounting clips, 2 plastic carrying plugs and 2 flexible plastic tubing connectors - bottle fluorescein green dye concentrate

SKU	2016705
MPN	1222-M300W/M

1222-M400W/M

range 200 to 0 to 200 mm w.c. with mounting clips

1222-M400-W/M 200...0...200 mm w.c.

Dwyer Flex-Tube U-Tube Manometer Model: 1222-M400-W/M Range: M400 (200...0...200 mm w.c.) Including: - 2 magnetic mounting clips, 2 plastic carrying plugs and 2 flexible plastic tubing connectors - bottle fluorescein green dye concentrate

SKU	2017484
MPN	1222-M400W/M

1222-M200W/M

range 100 to 0 to 100 mm w.c. with mounting clips

1222-M200-W/M 100...0...100 mm w.c.

Dwyer Flex-Tube U-Tube Manometer Model: 1222-M200-W/M Range: M200 (100...0...100 mm w.c.) Including: - 2 magnetic mounting clips, 2 plastic carrying plugs and 2 flexible plastic tubing connectors - bottle fluorescein green dye concentrate

SKU	2017485
MPN	1222-M200W/M

Description
Features

Description

Features

Measuring principle	Vloeistofkolom
Medium	Lucht
Voeding	Niet van toepassing
Procesaansluiting	5 mm slangpilaar
