Kimo humidity transmitter series TH110

The Kimo TH110 series is a relative humidity transmitter with or without display. The TH110 is ideal to use as humidity and temperature measurement in rooms and air ducts for connection to a building management system. The installation is very easy and the housing can be mounted in two parts making it ideal for installers.

Compare

Questions?

Email a friend

Questions? Send me a message!

or call me on +31 (0)297 - 514 833

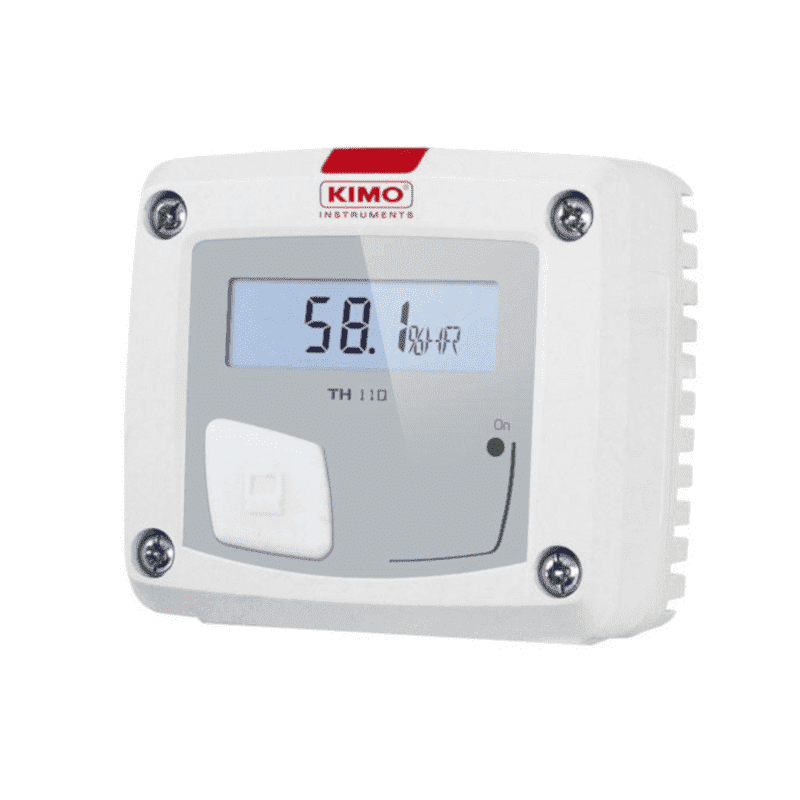

TH110-POS

Internal sensor, 4-20 mA, with display

TH110-POS P/n 23954

Kimo Humidity transmitter Model: TH110-POS Range: 5...95% RH / 0...50°C Power supply: 24 Vdc Output: 2x 4-20mA (2wire) Probe: internal (ambient) With display P/n 23954

SKU	2020716
MPN	TH110-POS

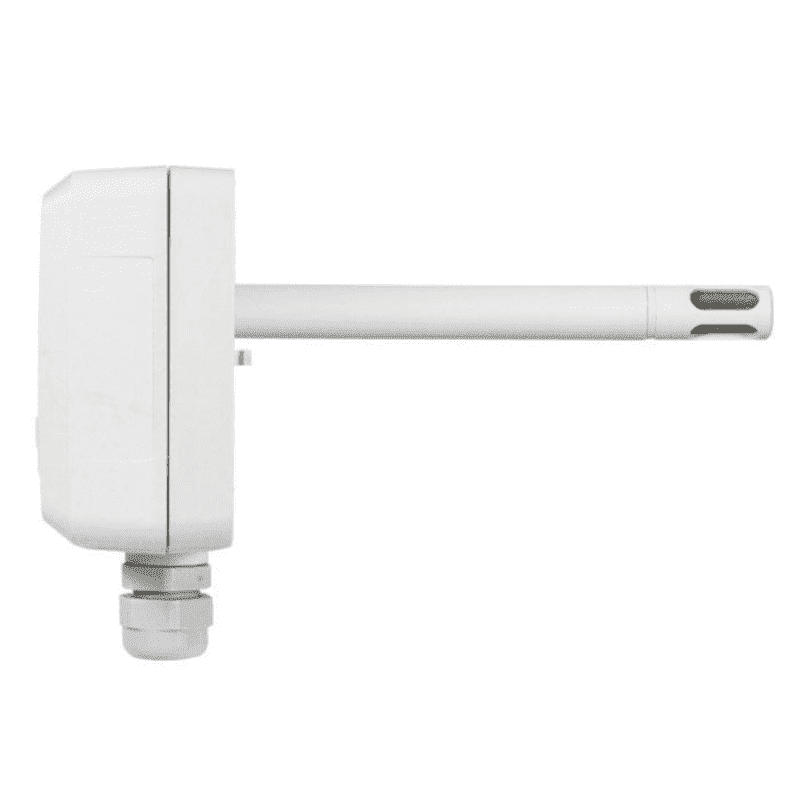

TH110-POA

duct mount, 4-20 mA, with display

TH110-POA P/n 23953

Kimo Humidity transmitter Model: TH110-POA Range: 5...95% RH / 0...50°C Power supply: 24 Vdc Output: 2x 4-20mA (2wire) Probe: duct mount (direct) With display P/n 23953

SKU	2020717
MPN	TH110-POA

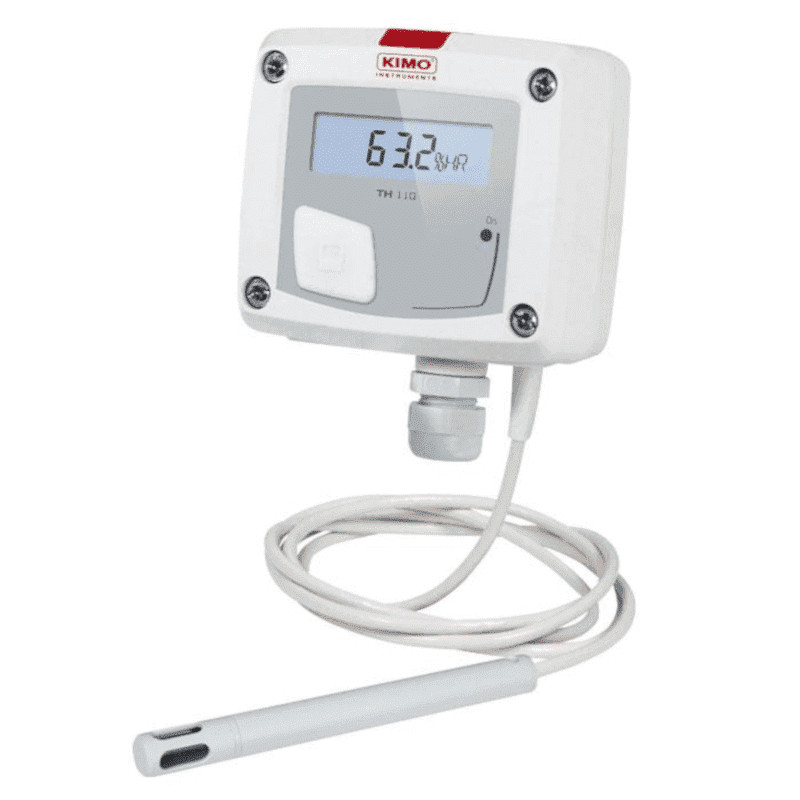

TH110-POD

Externalal sensor 2m cable, 4-20 mA, with display

TH110-POD P/n 23952

Kimo Humidity transmitter Model: TH110-POD Range: 5...95% RH / -20...+80°C Power supply: 16-30 Vdc Output: 2x 4-20mA (2wire) Probe: external With 2m cable With display P/n 23952

SKU	2020718
MPN	TH110-POD

TH110-PNS

Internal sensor, 4-20 mA, without display

TH110-PNS P/n 23957

Kimo Humidity transmitter Model: TH110-PNS Range: 5...95% RH / 0...50°C Power supply: 24 Vdc Output: 2x 4-20mA (2wire) Probe: internal (ambient) Without display P/n 23957

SKU	2020719
MPN	TH110-PNS

TH110-PNA

duct mount, 4-20 mA, without display

TH110-PNA P/n 23956

Kimo Humidity transmitter Model: TH110-PNA Range: 5...95% RH / 0...50°C Power supply: 24 Vdc Output: 2x 4-20mA (2wire) Probe: duct mount (direct) Without display P/n 23956

SKU	2020720
MPN	TH110-PNA

TH110-PND

Externalal sensor 2m cable, 4-20 mA, without display

TH110-PND P/n 23955

Kimo Humidity transmitter Model: TH110-PND Range: 5...95% RH / -20...+80°C Power supply: 24 Vdc Output: 2x 4-20mA (2wire) Probe: external With 2m cable Without display P/n 23955

SKU	2020721
MPN	TH110-PND

TH110-AOS

Internal sensor, 0-10 V, with display

TH110-AOS P/n 23960

Kimo Humidity transmitter Model: TH110-AOS Range: 5...95% RH / 0...50°C Power supply: 24 Vdc Output: 2x 0-10V (3-4wire) Probe: internal (ambient) With display P/n 23960

SKU	2020722
MPN	TH110-AOS

TH110-AOA

duct mount, 0-10 V, with display

TH110-AOA P/n 23959

Kimo Humidity transmitter Model: TH110-AOA Range: 5...95% RH / 0...50°C Power supply: 24 Vdc Output: 2x 0-10V (3-4wire) Probe: duct mount (direct) With display P/n 23959

SKU	2020723
MPN	TH110-AOA

TH110-AOD

Externalal sensor 2m cable, 0-10 V, with display

TH110-AOD P/n 23958

Kimo Humidity transmitter Model: TH110-AOD Range: 5...95% RH / 0...50°C Power supply: 24 Vdc Output: 2x 0-10V (3-4wire) Probe: external With 2m cable With display P/n 23958

SKU	2020724
MPN	TH110-AOD

TH110-ANS

Internal sensor, 0-10 V, without display

TH110-ANS P/n 23963

Kimo Humidity transmitter Model: TH110-ANS Range: 5...95% RH / 0...50°C Power supply: 24 Vdc Output: 2x 0-10V (3-4wire) Probe: internal (ambient) Without display P/n 23963

SKU	2020725
MPN	TH110-ANS

TH110-ANA

duct mount, 0-10 V, without display

TH110-ANA P/n 23962

SKU	2020726
MPN	TH110-ANA

TH110-AND

Externalal sensor 2m cable, 0-10 V, without display

TH110-AND P/n 23961

Kimo Humidity transmitter Model: TH110-AND Range: 5...95% RH / 0...50°C Power supply: 24 Vdc Output: 2x 0-10V (3-4wire) Probe: external With 2m cable Without display P/n 23961

SKU	2020727
MPN	TH110-AND
