Kimo air velocity transmitter series CTV110

Kimo air velocity transmitter series CTV110

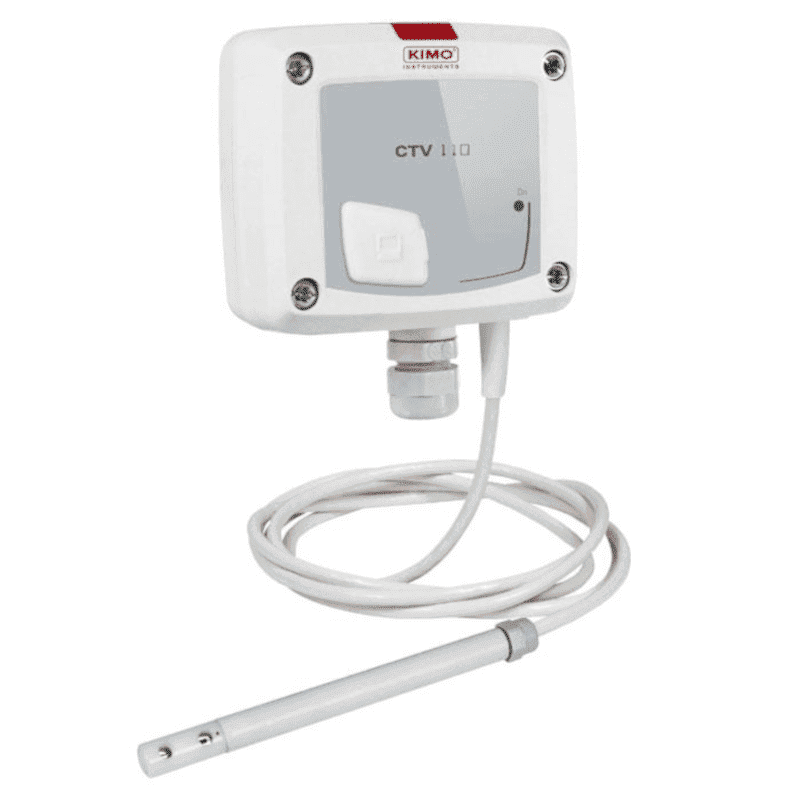

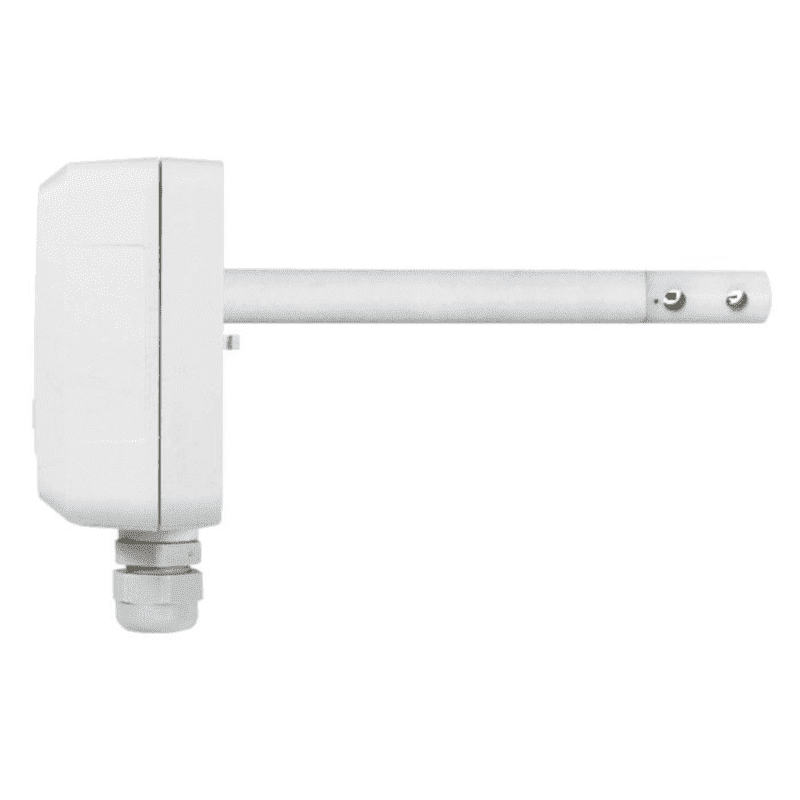

The Kimo CTV110 is a series of air velocity transmitters with or without display. The CTV110 is ideal to use as flow measurement in air ducts, fume hoods and laminar flow cabinets for connection to a building management system. The installation is very easy and the housing can be mounted in two parts making it ideal for installers.

Compare

Questions?

Email a friend

Questions? Send me a message!

or call me on +31 (0)297 - 514 833

CTV110-ANA150

Duct mount 150mm, 4-20 mA, without display

CTV110-ANA150 p/n 23926

Kimo Air velocity transmitter Model: CTV110-ANA150 Range: 0...30 m/s and 0...50°C Power supply: 24 Vdc Output: 4-20mA (2wire) Probe: duct mount 150 mm Without display P/n 23926

SKU	2020778
MPN	CTV110-ANA150

CTV110-ANA300

Duct mount 300mm, 4-20 mA, without display

CTV110-ANA300 p/n 23927

Kimo Air velocity transmitter Model: CTV110-ANA300 Range: 0...30 m/s and 0...50°C Power supply: 24 Vdc Output: 4-20mA (2wire) Probe: duct mount 300 mm Without display P/n 23927

SKU	2020779
MPN	CTV110-ANA300

CTV110-AND150

External 2m cable 150mm, 4-20 mA, without display

CTV110-AND150 p/n 23924

Kimo Air velocity transmitter Model: CTV110-AND150 Range: 0...30 m/s and 0...50°C Power supply: 24 Vdc Output: 4-20mA (2wire) Probe: external 150 mm 2m cable Without display P/n 23924

SKU	2020780
MPN	CTV110-AND150

CTV110-AND300

External 2m cable 300mm, 4-20 mA, without display

CTV110-AND300 p/n 23925

Kimo Air velocity transmitter Model: CTV110-AND300 Range: 0...30 m/s and 0...50°C Power supply: 24 Vdc Output: 4-20mA (2wire) Probe: external 300 mm with 2m cable Without display P/n 23925

SKU	2020781
MPN	CTV110-AND300

CTV110-AOA150

Duct mount 150mm, 4-20 mA, with display

CTV110-AOA150 p/n 23922

Kimo Air velocity transmitter Model: CTV110-AOA150 Range: 0...30 m/s and 0...50°C Power supply: 24 Vdc Output: 4-20mA (2wire) Probe: duct mount 150 mm With display P/n 23922

SKU	2020782
MPN	CTV110-AOA150

CTV110-AOA300

Duct mount 300mm, 4-20 mA, with display

CTV110-AOA300 p/n 23923

Kimo Air velocity transmitter Model: CTV110-AOA300 Range: 0...30 m/s and 0...50°C Power supply: 24 Vdc Output: 4-20mA (2wire) Probe: duct mount 300 mm With display P/n 23923

SKU	2020783
MPN	CTV110-AOA300

CTV110-AOD150

External 2m cable 150mm, 4-20 mA, with display

CTV110-AOD150 p/n 23920

Kimo Air velocity transmitter Model: CTV110-AOD150 Range: 0...30 m/s and 0...50°C Power supply: 24 Vdc Output: 4-20mA (2wire) Probe: external 150 mm 2m cable With display P/n 23920

SKU	2020784
MPN	CTV110-AOD150

CTV110-AOD300

External 2m cable 300mm, 4-20 mA, with display

CTV110-AOD300 p/n 23921

Kimo Air velocity transmitter Model: CTV110-AOD300 Range: 0...30 m/s and 0...50°C Power supply: 24 Vdc Output: 4-20mA (2wire) Probe: external 300 mm 2m cable With display P/n 23921

SKU	2020785
MPN	CTV110-AOD300

CTV110-VNA150

Duct mount 150mm, 0-10 V, without display

CTV110-VNA150 p/n 23934

Kimo Air velocity transmitter Model: CTV110-VNA150 Range: 0...30 m/s and 0...50°C Power supply: 24 Vac/dc Output: 0-10V (3-4wire) Probe: duct mount 150 mm Without display P/n 23934

SKU	2020786
MPN	CTV110-VNA150

CTV110-VNA300

Duct mount 300mm, 0-10 V, without display

CTV110-VNA300 p/n 23935

Kimo Air velocity transmitter Model: CTV110-VNA300 Range: 0...30 m/s and 0...50°C Power supply: 24 Vac/dc Output: 0-10V (3-4wire) Probe: duct mount 300 mm Without display P/n 23935

SKU	2020787
MPN	CTV110-VNA300

CTV110-VND150

External 2m cable 150mm, 0-10 V, without display

CTV110-VND150 p/n 23932

Kimo Air velocity transmitter Model: CTV110-VND150 Range: 0...30 m/s and 0...50°C Power supply: 24 Vac/dc Output: 0-10V (3-4wire) Probe: external 150 mm 2m cable Without display P/n 23932

SKU	2020788
MPN	CTV110-VND150

CTV110-VND300

External 2m cable 300mm, 0-10 V, without display

CTV110-VND300 p/n 23933

Kimo Air velocity transmitter Model: CTV110-VND300 Range: 0...30 m/s and 0...50°C Power supply: 24 Vac/dc Output: 0-10V (3-4wire) Probe: external 300 mm 2m cable Without display P/n 23933

SKU	2020789
MPN	CTV110-VND300

CTV110-VOA150

Duct mount 150mm, 0-10 V, with display

CTV110-VOA150 p/n 23930

Kimo Air velocity transmitter Model: CTV110-VOA150 Range: 0...30 m/s and 0...50°C Power supply: 24 Vac/dc Output: 0-10V (3-4wire) Probe: duct mount 150 mm With display P/n 23930

SKU	2020790
MPN	CTV110-VOA150

CTV110-VOA300

Duct mount 300mm, 0-10 V, with display

CTV110-VOA300 p/n 23931

Kimo Air velocity transmitter Model: CTV110-VOA300 Range: 0...30 m/s and 0...50°C Power supply: 24 Vac/dc Output: 0-10V (3-4wire) Probe: duct mount 300 mm With display P/n 23931

SKU	2020791
MPN	CTV110-VOA300

CTV110-VOD150

External 2m cable 150mm, 0-10 V, with display

CTV110-VOD150 p/n 23928

Kimo Air velocity transmitter Model: CTV110-VOD150 Range: 0...30 m/s and 0...50°C Power supply: 24 Vac/dc Output: 0-10V (3-4wire) Probe: external 150 mm 2m cable With display P/n 23928

SKU	2020792
MPN	CTV110-VOD150

CTV110-VOD300

External 2m cable 300mm, 0-10 V, with display

CTV110-VOD300 p/n 23929

Kimo Air velocity transmitter Model: CTV110-VOD300 Range: 0...30 m/s and 0...50°C Power supply: 24 Vac/dc Output: 0-10V (3-4wire) Probe: external 300 mm 2m cable With display P/n 23929

SKU	2020793
MPN	CTV110-VOD300

Description

Features

Measuring principle

Hittedraad
