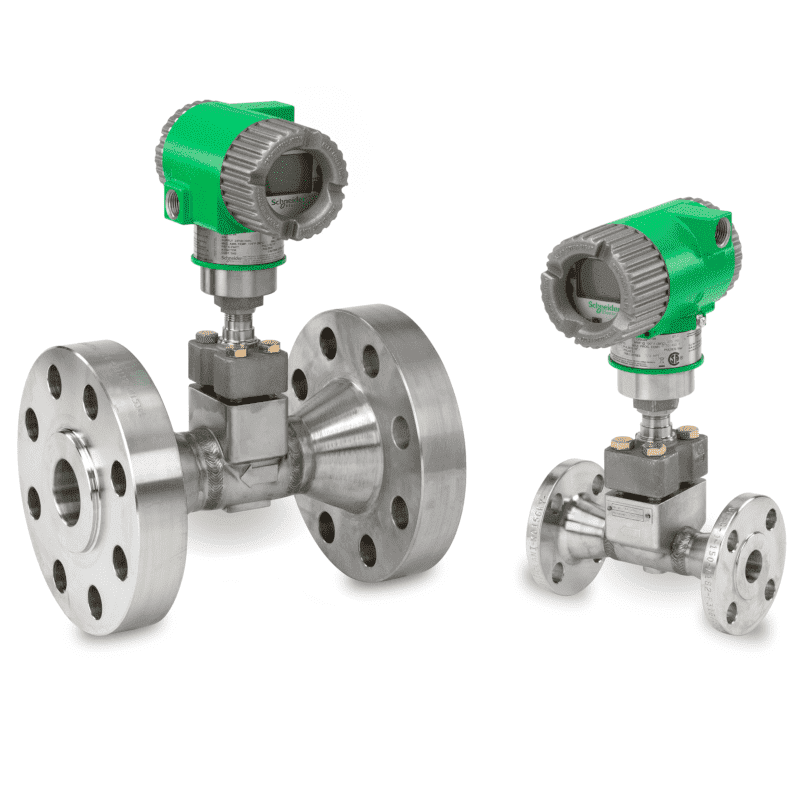

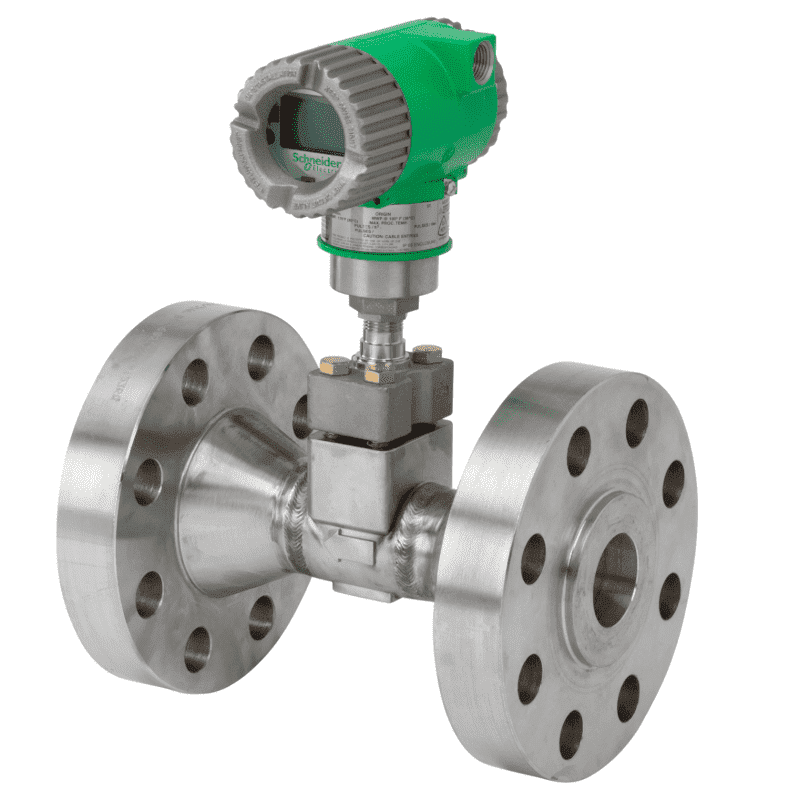

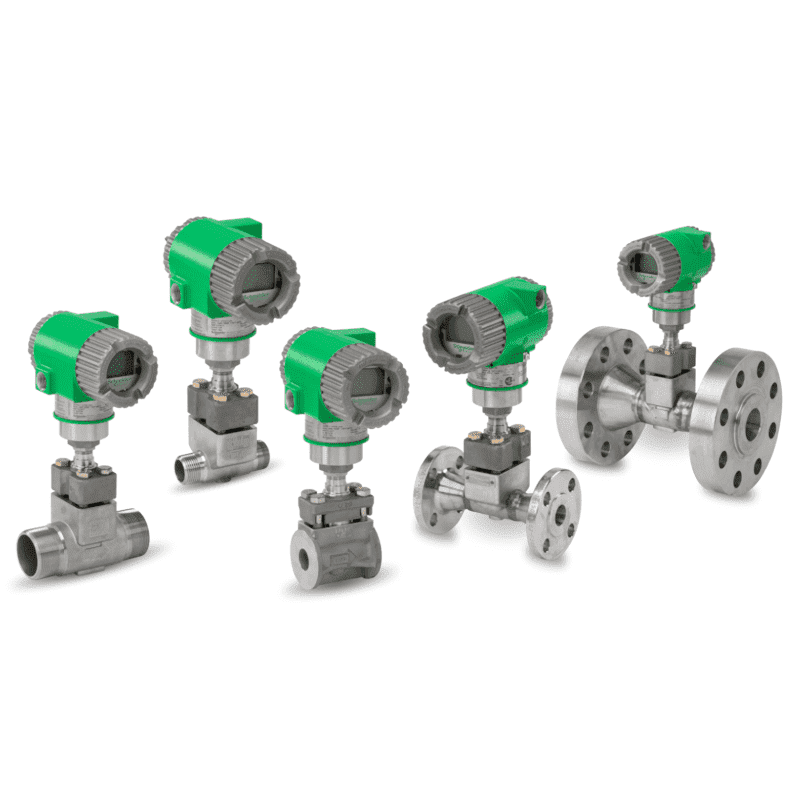

The Foxboro® 84F series consists of intelligent, high-performance vortex flow meters with flange or NPT connections. The flow meters have standard pulse and a 4-20 mA output with Hart communication. A built-in LCD display with pushbuttons is offered for local configuration of the 84F series. No other vortex flow meter is as accurate in the field of liquid, gas and steam flow measurements at temperatures up to 430ºC. This is due to the real-time correction of the Reynolds number and Foxboro patented DirectSense™ technology.
| Medium |
- Compatibele vloeistoffen
- Compatibele gassen
|
| Leidingdiameter |
- 3/4" (DN20)
- 1" (DN25)
- 1-1/2" (DN40)
- > 10" (DN250)
- 2" (DN50)
- 3" (DN80)
- 4" (DN100)
- 6" (DN150)
- 8" (DN200)
- 10" (DN250)
|
| Certificeringen |
- IECex Ex d
- FM
- CSA
- ATEX Ex i
- ATEX Ex d
- IECex Ex i
|
| Meetprincipe |
Vortex
|
| Behuizing |
IP66
|
| Procesaansluiting |
- Tussenklem (Wafer)
- ANSI flenzen
- DIN flenzen
|
| Uitgang |
|
| Digitale communicatie |
Hart
|
| Voeding |
24 Vdc
|
