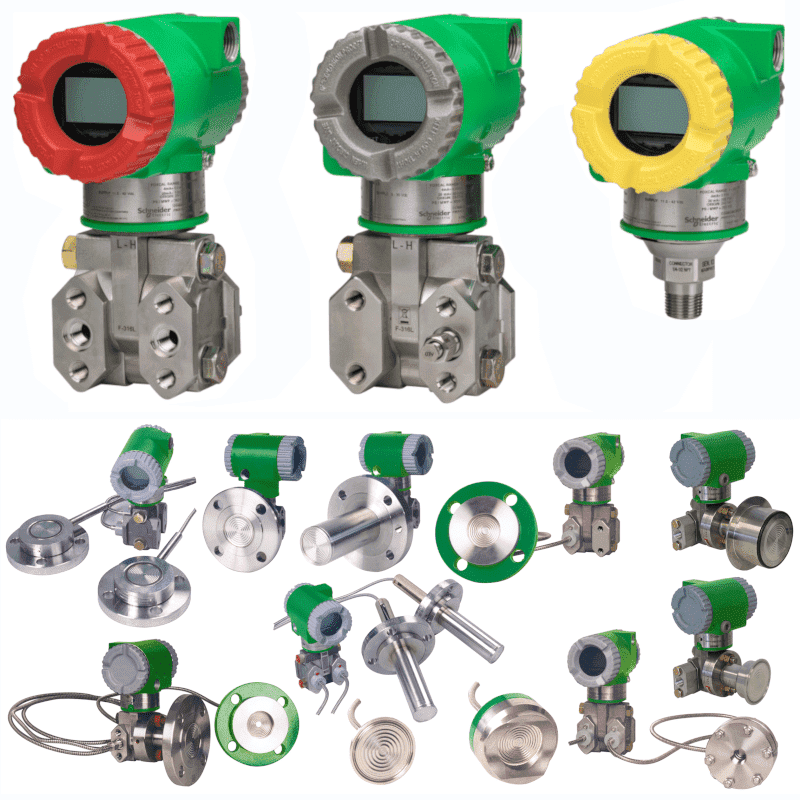

The IDP10S series is a very robust and advanced differential pressure transmitter within the Schneider Electric range and is SIL2 certified as standard. The IDP10S measures a pressure difference with an accuracy of 0.05% of the reading. Thanks to the special FoxCal technology, one transmitter has no less than 11 calibration curves in a pressure range of 0-414 bar. This allows the same model of differential pressure transmitter to be used for multiple measuring ranges, without loss of accuracy. Useful options are the yellow and red colored rings with which color codes can easily be applied in a factory for SIL classifications, for example.
