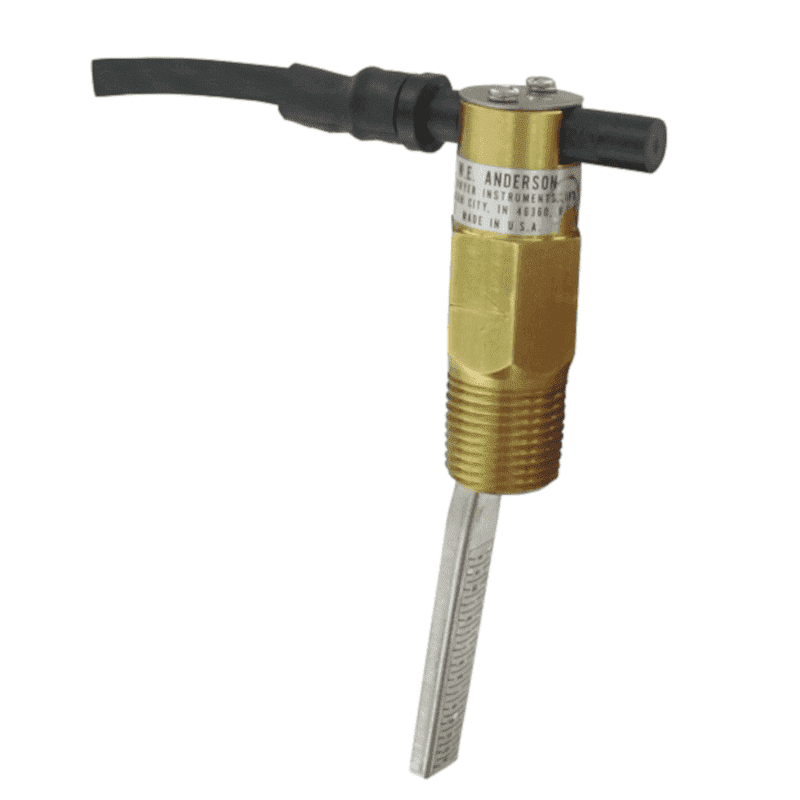

V10 is esigned to provide an inexpensive, reliable unit to monitor the presence or absence of flow in a system. The V10 flow switch is used to monitor unattended equipment and protect it from costly damage. The V10 flow switch utilizes a rugged, hermetically sealed reed switch which is encapsulated in a polypropylene switch housing that fits into a standard heavy duty leak proof brass body or optional 303 SS body. The patented switch adjustment allows the user to change the switch to Normally Open (NO) or Normally Closed (NC) in the field merely by loosening two screws.
| Procesaansluiting |
|
| Meetprincipe |
Vaan
|
| Behuizing |
IP66
|
| Leidingdiameter |
- 1" (DN25)
- 2" (DN50)
- 1-1/4" (DN32)
- 1-1/2" (DN40)
- 1/2" (DN15)
- 3/4" (DN20)
|
| Contact |
SPST NO/NC
|
| Voeding |
Niet van toepassing
|
| Medium |
- Compatibele gassen
- Compatibele vloeistoffen
|
