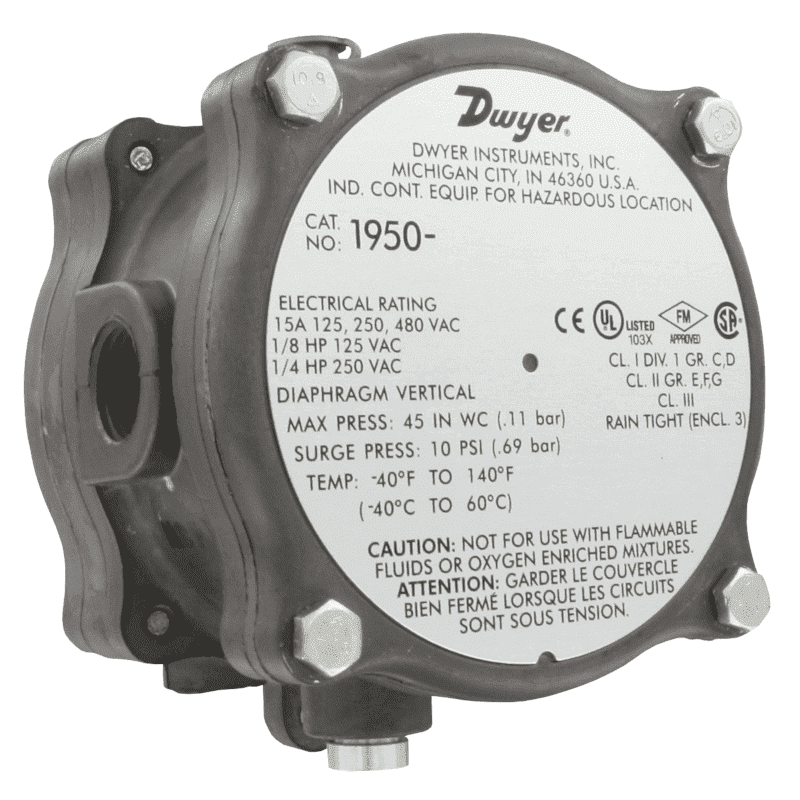

Model 1950 explosion proof pressure pressure switch combines the best features of the popular1900 series with an integral explosion-proof and weatherproof housing, making it an exceptional value for either application. It is CE, UL and CSA listed, FM approved for use in Class I, Div 1, Groups C and D, Class II Groups E, F, and G and Class III hazardous atmospheres (NEMA 7 & 9), Raintight NEMA 3 (IP54). The Model 1950G is an ATEX approved explosion-proof pressure switch. Adjustment to the set point of the switch can be made without disassembly of the housing.
| Medium |
Lucht
|
| Contact |
SPDT
|
| Voeding |
Niet van toepassing
|
| Behuizing |
IP54
|
| Procesaansluiting |
1/8" NPTf
|
| Certificeringen |
|
| Meetprincipe |
Membraan
|
