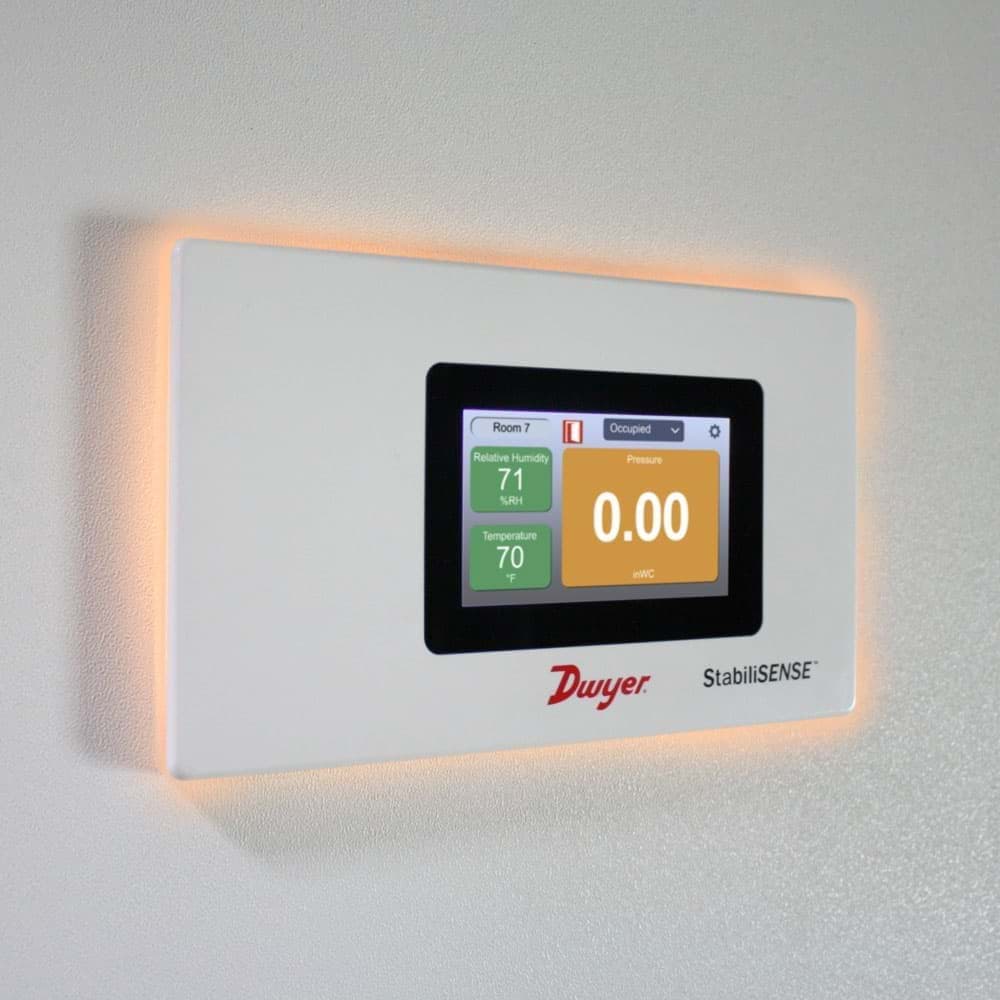

The Dwyer RSMC Room Status Monitor Series is designed for critical applications with low differential pressures that also require immediate local visibility. The 4.3” full color touchscreen can be configured to measure positive or negative pressure in, for example, cleanrooms, hospitals, isolation rooms and laboratories. The Dwyer RSME Room Status Monitor is a complete solution with a touchscreen graphical user interface for displaying up to 4 parameters. Think of pressure, relative humidity, temperature, ventilation and/or door status. Standard equipped with the high-quality capacitive pressure sensor, resulting in an extremely high accuracy. There is a choice between ± 0.25% or ± 0.5% RSS. In addition, 2 analog inputs (0…10V or 4…20mA) for reading in a combined T/%RH transmitter or additional pressure transmitter(s). The graphical color changes on the display indicate the status per parameter at a glance. Within the set limit value the display and LED ring turn green, a pre-alarm is yellow and outside the limit value the display turns red. In addition, the room status monitor has an internal buzzer (69 dB). The RSME has a plastic bezel as standard, but is also available in a brushed stainless steel version. The RSME room status monitor comes standard with BACnet MS/TP and Modbus® RTU communication, but also has one digital (5A@30VDC) and one analog output (0…10V or 4…20mA).
