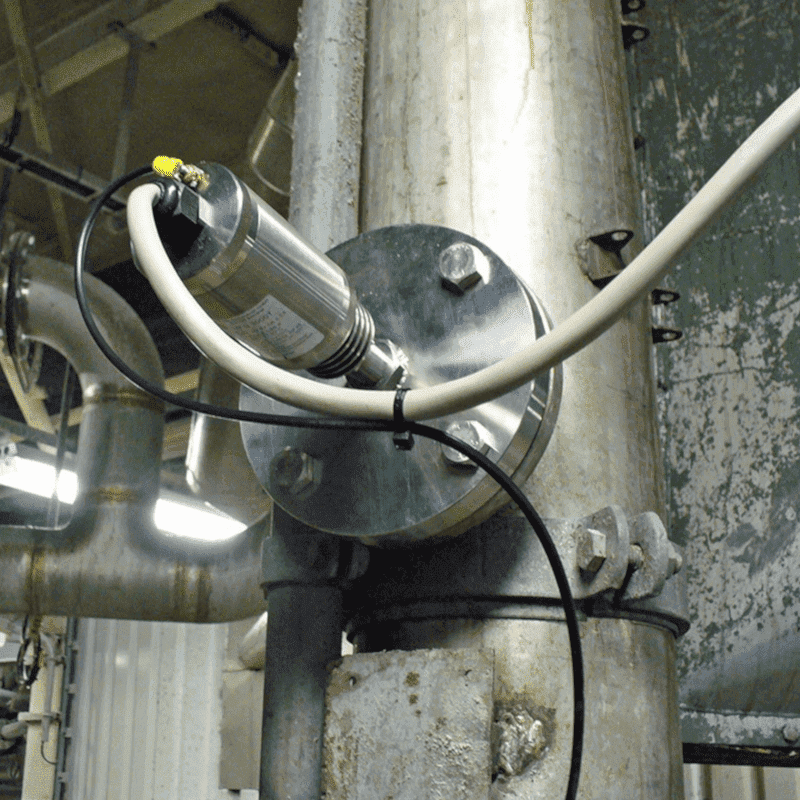

The MF3000 flow meter for solids is designed for flow measurement in metal tubes from a few kg / hour to many tons / hour. The system is suitable for flow measurements of powders, granulates and granules from 1 nm to 2 cm in pneumatic or free-fall conditions. The measuring principle of the MF 3000 is based on the doppler effect, where microwaves are reflected by particles passing through the tube. Non-moving particles such as dust accumulation are excluded from the calculation. The installation of the flow meter is simple and cost effective. The bulk flow meter can be placed in a welded branch of a tube, the flow sensor being screwed flush with the inside of the tube. The sensor is connected to a DIN-rail mounted transmitter with 4 ... 20 mA, RS232 and RS485 outputs.
| Medium |
Poeders, korrels en granulaat
|
| Uitgang |
4-20 mA
|
| Voeding |
|
| Behuizing |
IP65
|
| Meetprincipe |
Doppler radar
|
