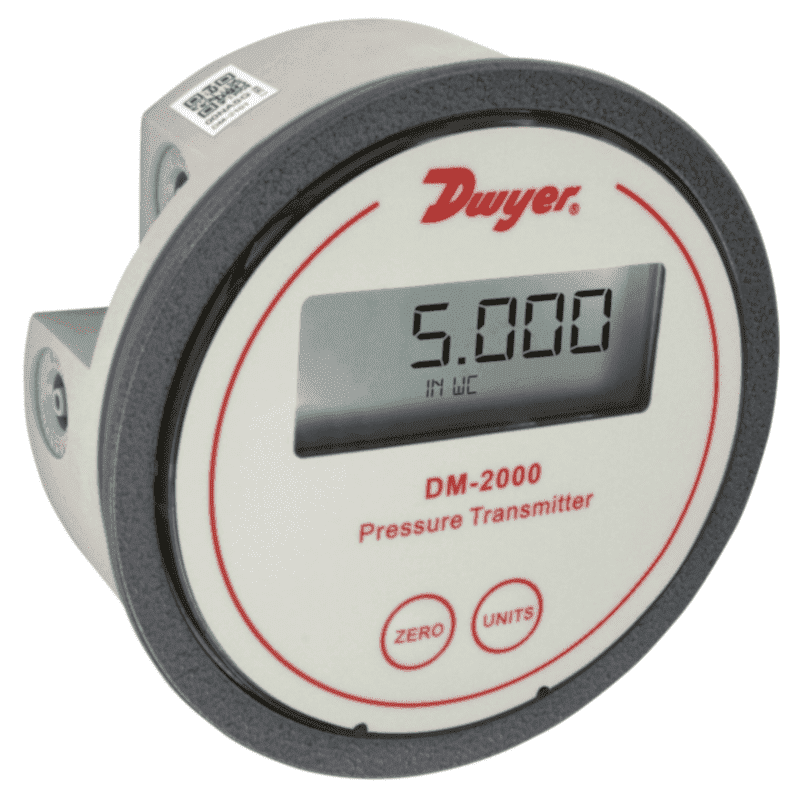

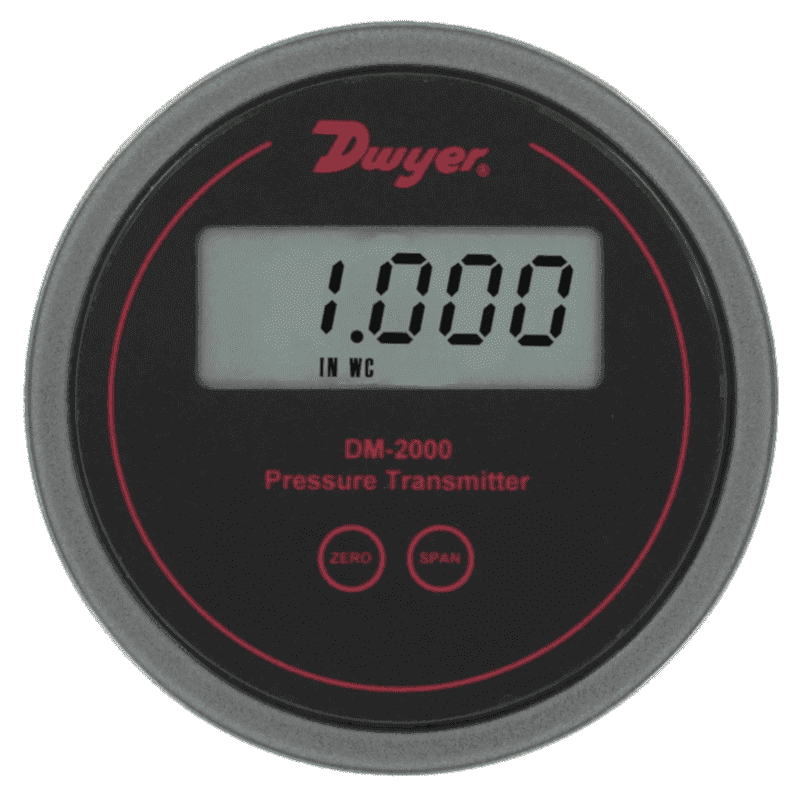

The Dwyer series DM-2000 differential pressure transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM-2000 housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic gage. A wide range of models are available factory calibrated to specific ranges. Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy. An optional 3.5 digit LCD shows process and engineering units.
| Medium |
Lucht
|
| Uitgang |
4-20 mA
|
| Voeding |
24 Vdc
|
| Procesaansluiting |
3 mm slangpilaar
|
| Meetprincipe |
Piëzo
|
| Behuizing |
IP65 voorzijde
|
