Pressure monitoring for hydraulic power packs

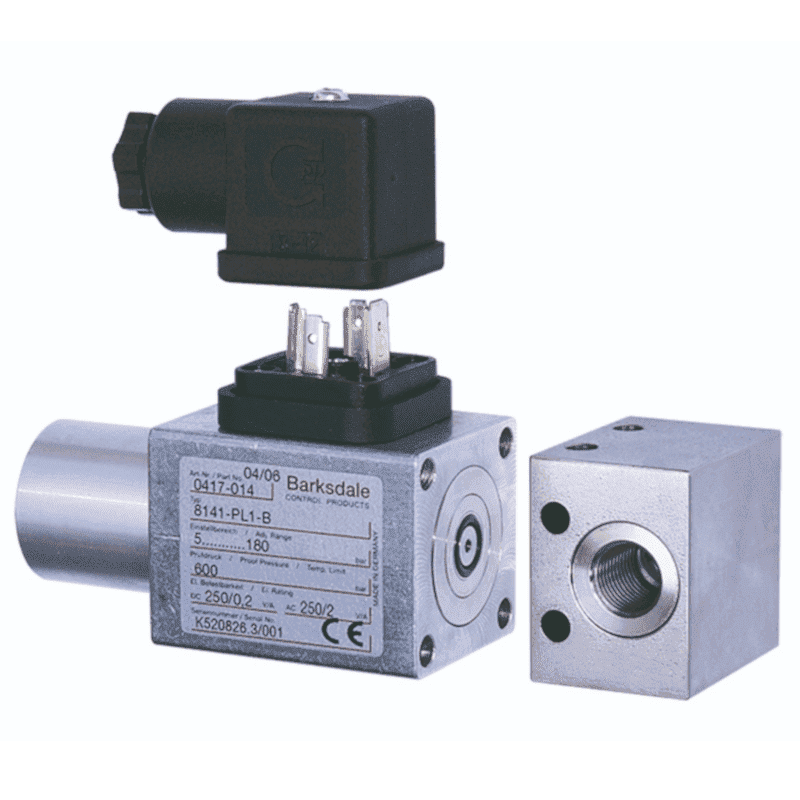

Series 8000 is mechanical pressure switches in diaphragm or piston design. The successors of the product lines XTM, XTK, X1T and 96200 have the additional advantage.6 pressure ranges allow precise setting between 0,4 to 6 bar and from 80 to 600 bar. The housing is made of aluminium diecast 230 with a protection class IP¨65. The 8000-series are ideal for OEM, mobile- and industrial-hydraulics an...

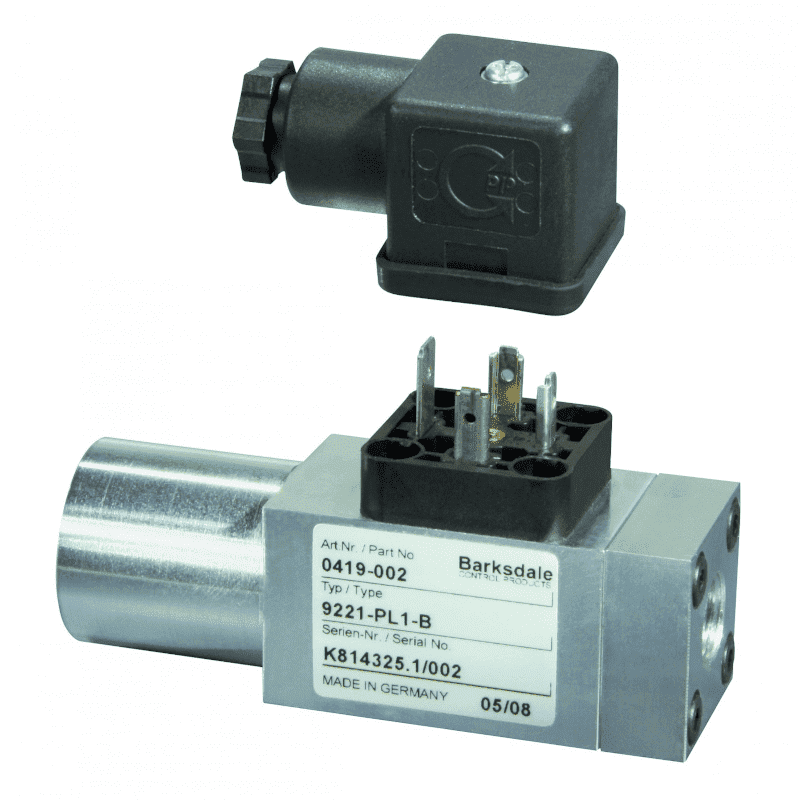

The series 9000 switches with a piston-type spring-loaded pressure element and snap-acting microswitch are characterized by their compact design. The housing is made of aluminium and has a protection class IP65. 3 pressure ranges allow precise setting between 6 and 400 bar. The switch is ideal for OEM applications, hydraulic and pneumatic systems.

The Barksdale BPS3000 series is an electronic pressure switch with optional transmitter output. The pressure switch is equipped with a LED display and is fully rotatable in the ideal position. The display and electrical connection can be rotated separately. In addition to the standard models the BPS300 can also be equipped out with other process connections, analog output or EPDM gaskets.
