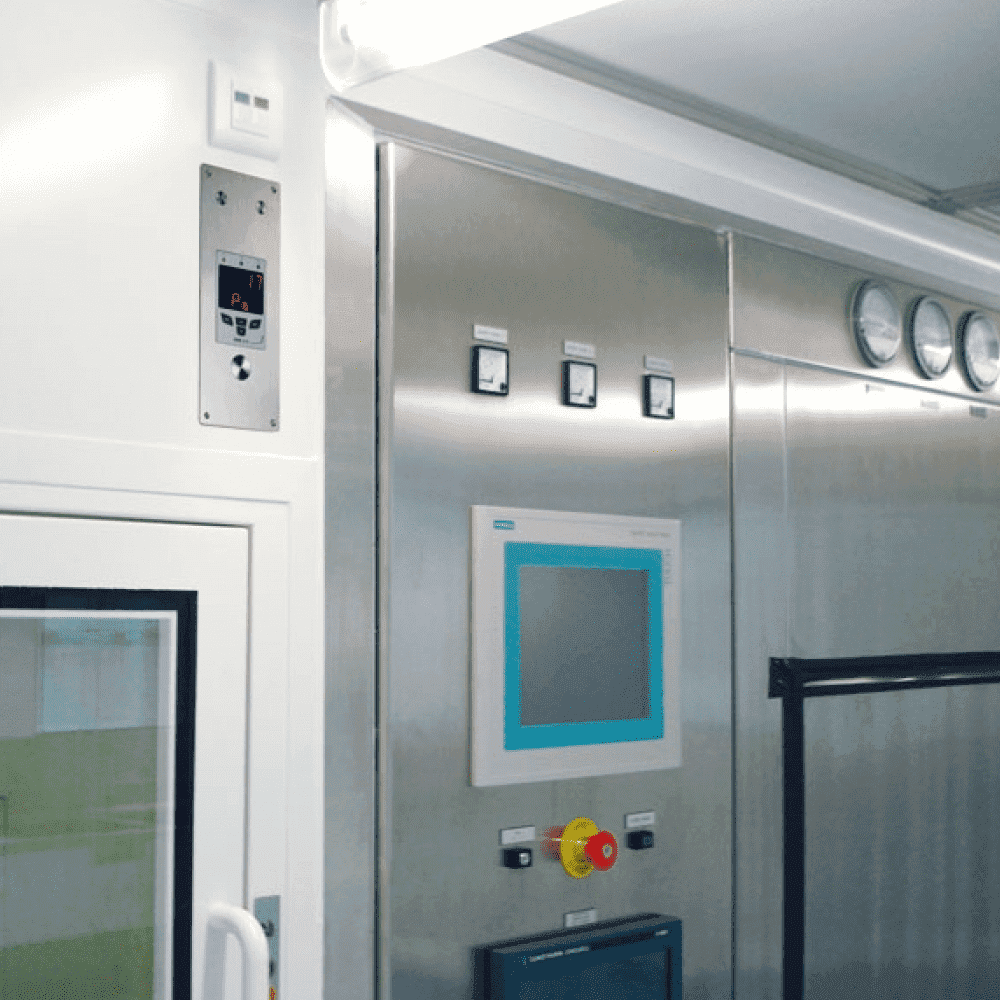

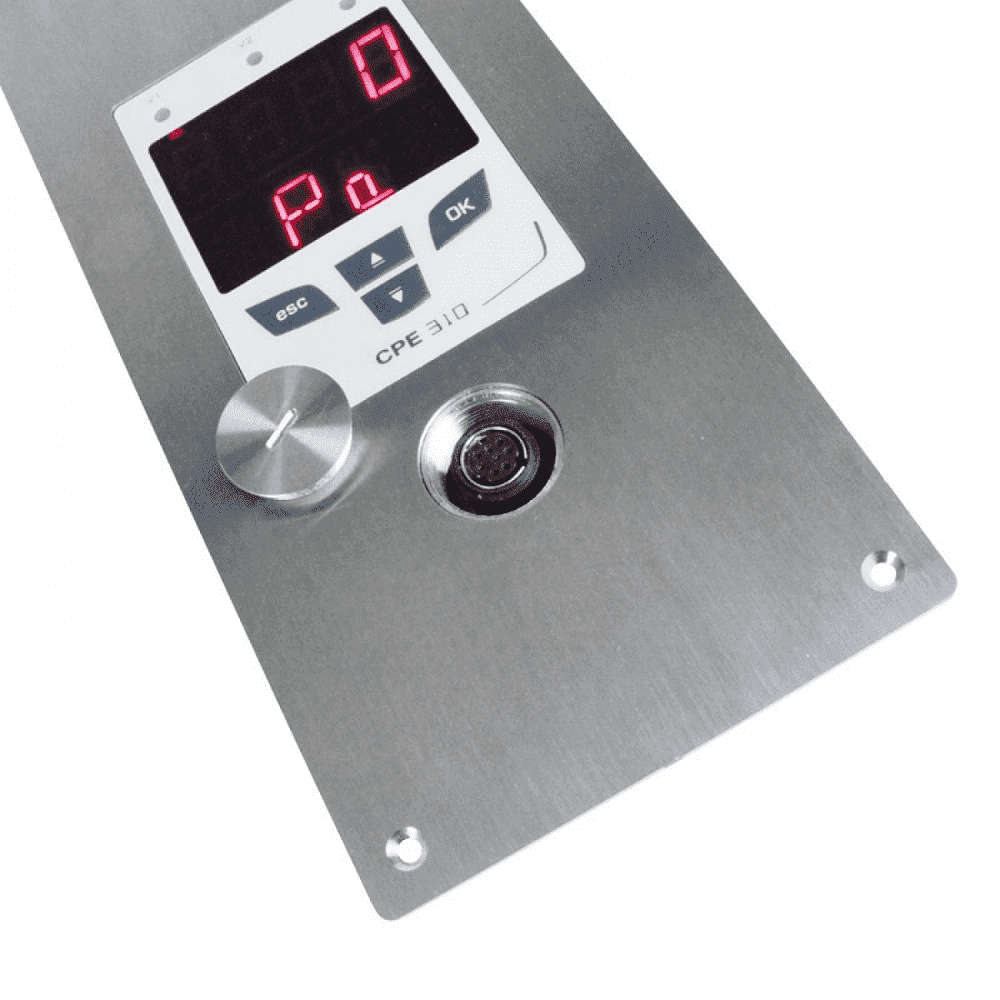

The Kimo CPE310 differential pressure transmitter is the successor of the CPE300. The transmitter can be flush mounted in a wall and can be calibrated using special connectors from the front. The CPE310 has an internal buzzer with acceptance and delay. Optionally, an external sensor for temperature and humidity, can be connected, the display then scrolls between the values. The CPE310-S has 3 analog outputs, or optional Modbus, for connecting to a building management system (BMS).
| Voeding |
|
| Uitgang |
- 4-20 mA
- 0-10 V
- 0-20 mA
- 0-5 V
|
| Behuizing |
IP65 voorzijde
|
| Meetprincipe |
Piëzo met auto-zero
|
| Medium |
Lucht
|
| Digitale communicatie |
Modbus RTU (optioneel)
|
| Procesaansluiting |
5 mm slangpilaar
|
