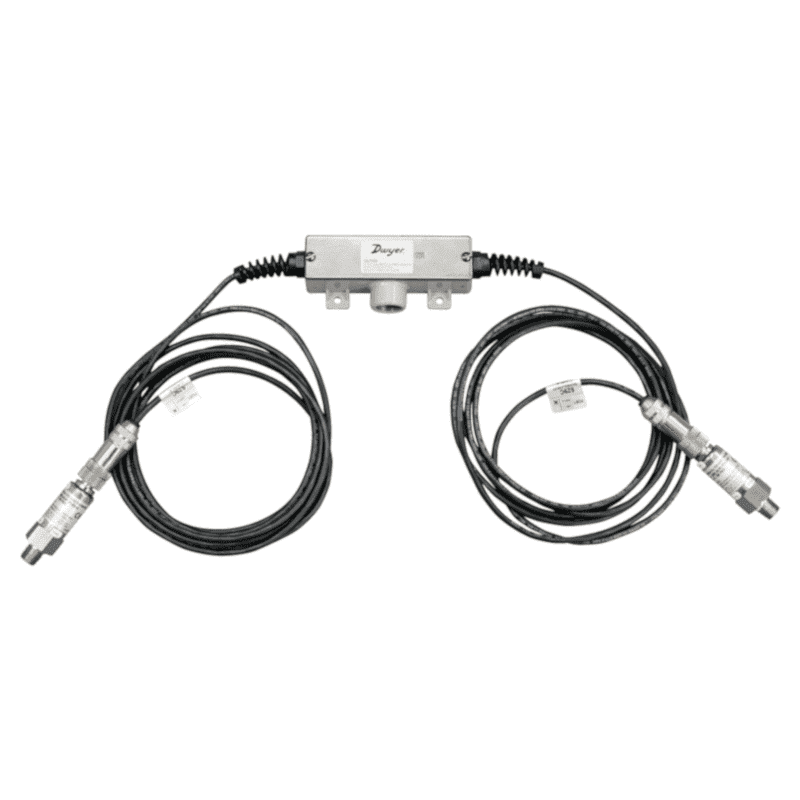

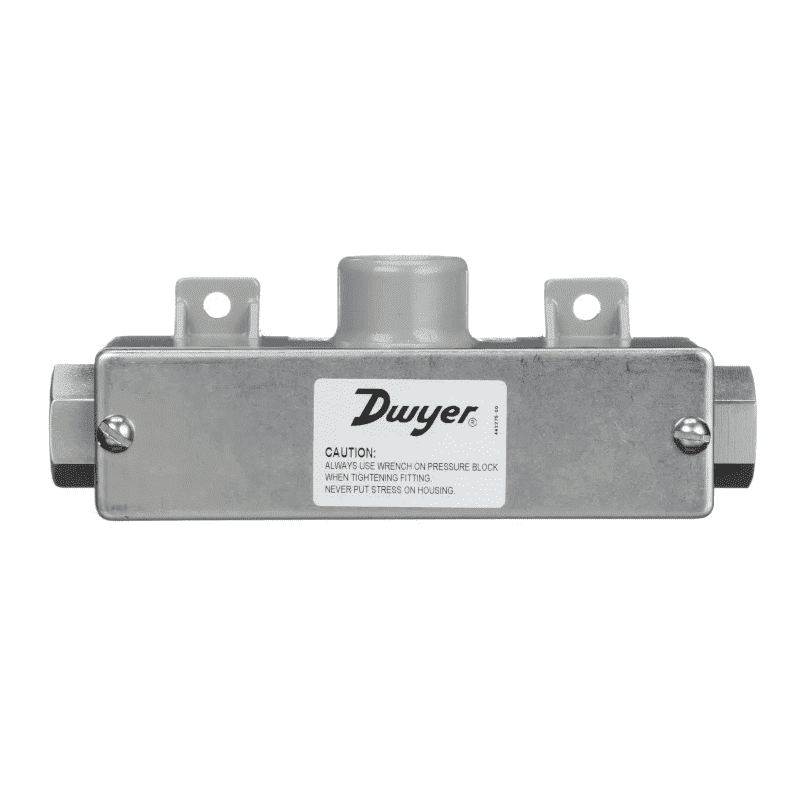

The Series 629C Differential Pressure Transmitter monitors differential pressure of air and compatible gases and liquids with 0.5% accuracy. The design employs dual pressure sensors converting pressure changes into a standard 4-20 mA output signal for two wire circuits. Small internal volume and minimum moving parts result in exceptional response and reliability.
| Meetprincipe |
Piëzo
|
| Behuizing |
IP65
|
| Voeding |
24 Vdc
|
| Procesaansluiting |
- 1/4" NPTf
- 1/4" NPTm
- 1/4" BSPm
|
| Uitgang |
- 4-20 mA
- 0-10 V
- 0-5 V
- 1-5 V
|
| Medium |
- Compatibele gassen
- Compatibele vloeistoffen
|
